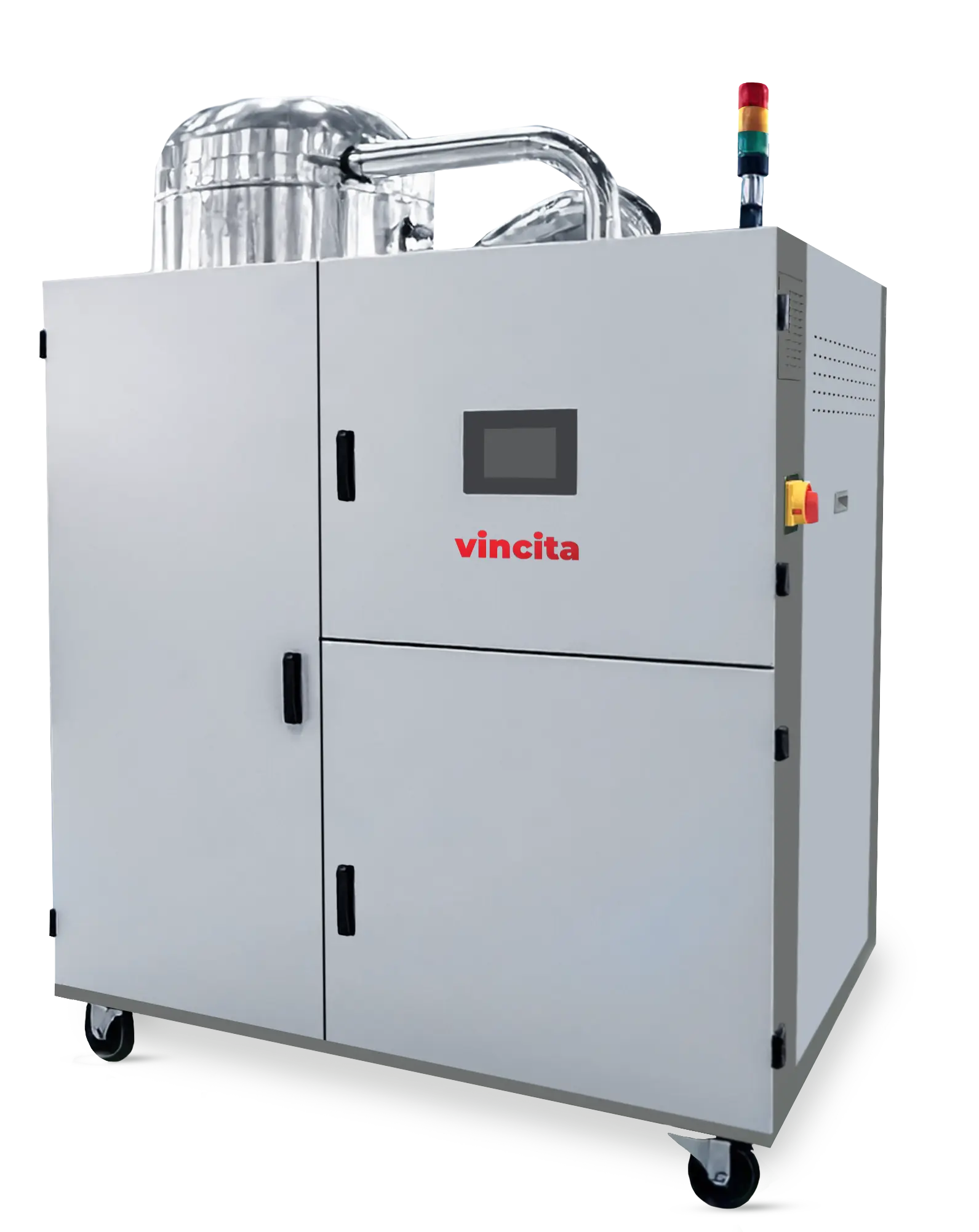

3 in 1 Combined System
The KHK series drying-dehumidifying-feeding combined system allows the use of various plastic raw materials, especially engineering plastics with high hygroscopicity such as PA, PC, PBT, and PET, by reducing their moisture content to below 0.2 g/cm³.
Specifications
-The insulated drying hopper prevents the dried material from reabsorbing moisture.
-Ability to feed multiple machines from a single dryer, according to requirements.
-Dry air is produced using the honeycomb principle.
-Available in two types: semi-open and fully enclosed.
-SIEMENS brand P.I.D microcomputer control.
-Dual cooling system.
Technical Parameters
| Model | Capacity (liters) | Capacity (kg) | Process Air Flow (m³/h) |
|---|---|---|---|
| KHK-25/50 | 38 | 25 | 50 |
| KHK-50/80 | 76 | 50 | 80 |
| KHK-75/120 | 115 | 75 | 120 |
| KHK-100/120 | 153 | 100 | 120 |
| KHK-150/150 | 230 | 150 | 150 |
| KHK-200/200 | 307 | 200 | 200 |
| KHK-300/200 | 461 | 300 | 200 |
| KHK-400/300 | 615 | 400 | 300 |
| KHK-500/400 | 769 | 500 | 400 |
| KHK-600/500 | 923 | 600 | 300 |
| KHK-700/500 | 1076 | 700 | 400 |
| KHK-800/700 | 1230 | 800 | 400 |
Hot Air Dryer
It is used primarily for drying non-hygroscopic materials such as PE, PS, and PP, effectively removing the small amounts of moisture present in the raw material.
Specifications
-A magnet is used, depending on capacity, to prevent any metal particles in the material from damaging the main machine.
-Material discharge flap facilitates easy cleaning and loading.
-Surfaces in contact with the raw material are made of stainless steel.
-Precision cast aluminum body with a smooth surface.
-Optional hot air recovery system and dust filter.
Technical Parameters
| Model | Capacity (kg) | Heater Capacity (kW) | Drying Temperature (°C) |
|---|---|---|---|
| SHK-25 | 25 | 3.8 | 125 |
| SHK-50 | 50 | 4.5 | 140 |
| SHK-75 | 75 | 5.5 | 140 |
| SHK-100 | 100 | 7 | 140 |
| SHK-150 | 150 | 9 | 140 |
| SHK-200 | 200 | 12 | 140 |
| SHK-300 | 300 | 15 | 140 |
| SHK-400 | 400 | 18 | 140 |
| SHK-500 | 500 | 20 | 140 |
| SHK-600 | 600 | 22 | 140 |
| SHK-800 | 800 | 24 | 140 |
European Type Hot Air Dryer
The ESHK series European type hot air dryers feature a stainless steel drying chamber. They are equipped with hot air blowing, regeneration functions, and a double layer insulated chamber. They are especially suitable for the drying process of engineering plastics.
Specifications
-The insulated drying hopper prevents the dried material from reabsorbing moisture.
-Can operate as an integrated system with equipment such as material dryers and dosing units.
-SIEMENS brand P.I.D microcomputer control.
-Energy efficient system with a recovery line that allows reheating and reusing the air.
-Ability to feed multiple machines from a single dryer, according to requirements.
-Openable viewing window suitable for hopper cleaning.
-Components of European origin.
-Overheating protection function.
-LED status indicator.
Technical Parameters
| Model | Capacity (kg) | Heater Capacity (kW) | Drying Temperature (°C) |
|---|---|---|---|
| ESHK-50 | 50 | 4,5 | 140 |
| ESHK-100 | 100 | 6,5 | 140 |
| ESHK-150 | 150 | 9 | 140 |
| ESHK-200 | 200 | 12 | 140 |
| ESHK-300 | 300 | 15 | 140 |
| ESHK-400 | 400 | 15 | 140 |
| ESHK-500 | 500 | 18 | 140 |
| ESHK-600 | 600 | 20 | 140 |
| ESHK-800 | 800 | 30 | 140 |
| ESHK-1000 | 1000 | 30 | 140 |
| ESHK-1500 | 1500 | 40 | 140 |
| ESHK-2000 | 2000 | 50 | 140 |
| ESHK-3000 | 3000 | 60 | 140 |
